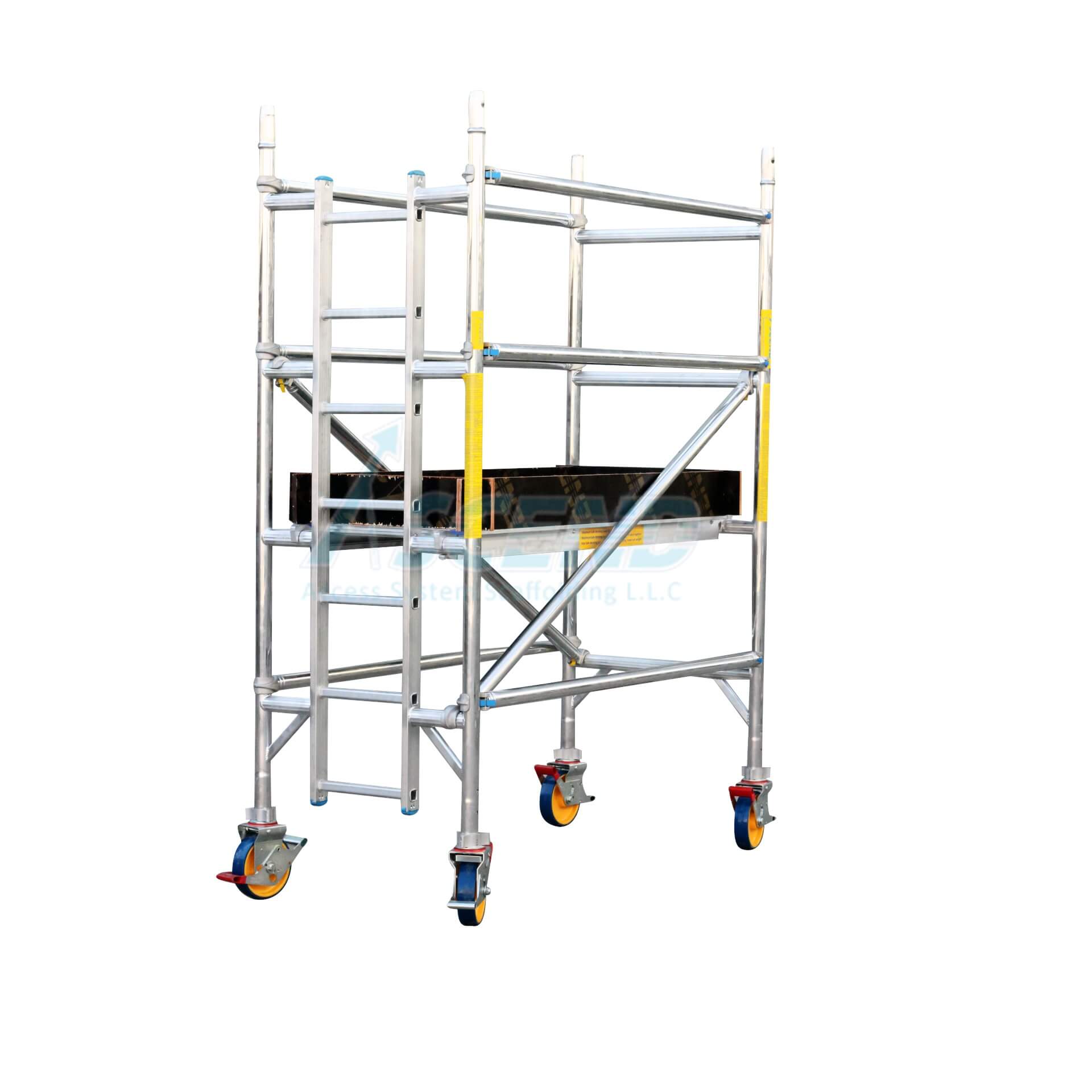

ALUMINUM TOWER – SINGLE WIDTH (80 CM X 178 CM) PLATFORM 1.0 M
| Span Frame: | A welded aluminum alloy (6061-T6) frame with rung gap of 50 cm and vertical tube thickness of 2.5 mm. |
| Ladder Frame: | Integrated seven-step industrial ladder with stepping gap of 28 cm is welded to aluminum alloy (6061-T6) frame. |
| Frame Connection: | Spigot joint, designed through cold forming, is an integral part of vertical tube (thickness of 2.5 mm) and is used to connect the frames (Span/Ladder) to give maximum strength amid the whole tower structure. |
| Crimping of Brace: | The Z configure (Horizontal/Diagonal) bracing enables a quick trouble free assembly while providing firm and stable structure with all the sides crimping to resist tension and torque loads. |
| TIG Welding: | Produces a high quality of weld-finish with precise control of heat variables (via amperage controls), leave no slag or splatter, keeping weld and surrounding metal as clean as possible. |
| Scaffold Platform: | Working platform, made of water-resistant and anti-slip wood, has aluminum frames all around for the perfect fitting of toe-board. The platform is available in two kinds i.e. standard and trapdoor. |
| Locking Mechanism: | The wind-lock safety system is to hold the platform from accidental lift and the use of locking-pin is to prevent unintended removal of frames. The self-locking hook fits automatically onto the rungs to support more than 220 degree covered-area for a perfectly stable tower. |
| Tower Stabilizer: | Triangular stabilizer is designed to use at the four corners of scaffold. It can also be adjusted in a telescopic manner to form a free standing tower along rubberized anti-slip pad to empower safety against sliding off. |
| Castor Wheel: | Available in 15/20 cm fixed-jack (F-Wheel) or with adjustable-leg (A-Wheel) up to 30 cm and constitutes dual-pedal braking for easy operation. The wheels are also available in solid nylon material, termed as White Nylon Castor Wheels. |
| Overall Width | Overall Length | Platform Height | Tower Height | Work Height | Net Weight | Max Load |
| 80 cm | 178 cm | 100 cm | 230 cm | 330 cm | 61.13 kg | 225 kg/Deck |
| Component | Size | Quantity |
| Span Frame 4 Rungs | 78 cm x 200 cm | 1 |
| Ladder Frame 4 Rungs | 78 cm x 200 cm | 1 |
| Horizontal Brace | 178 cm | 6 |
| Diagonal Brace | 205 cm | 2 |
| Trapdoor Platform | 178 cm | 1 |
| Toe-Board Set | 68 cm x 168 cm | 1 |
| Stabilizer | – | – |
| Wheel | Adjustable 20 cm | 4 |
| Snap Pin | – | – |
All pictures shown are for illustration purpose only.
