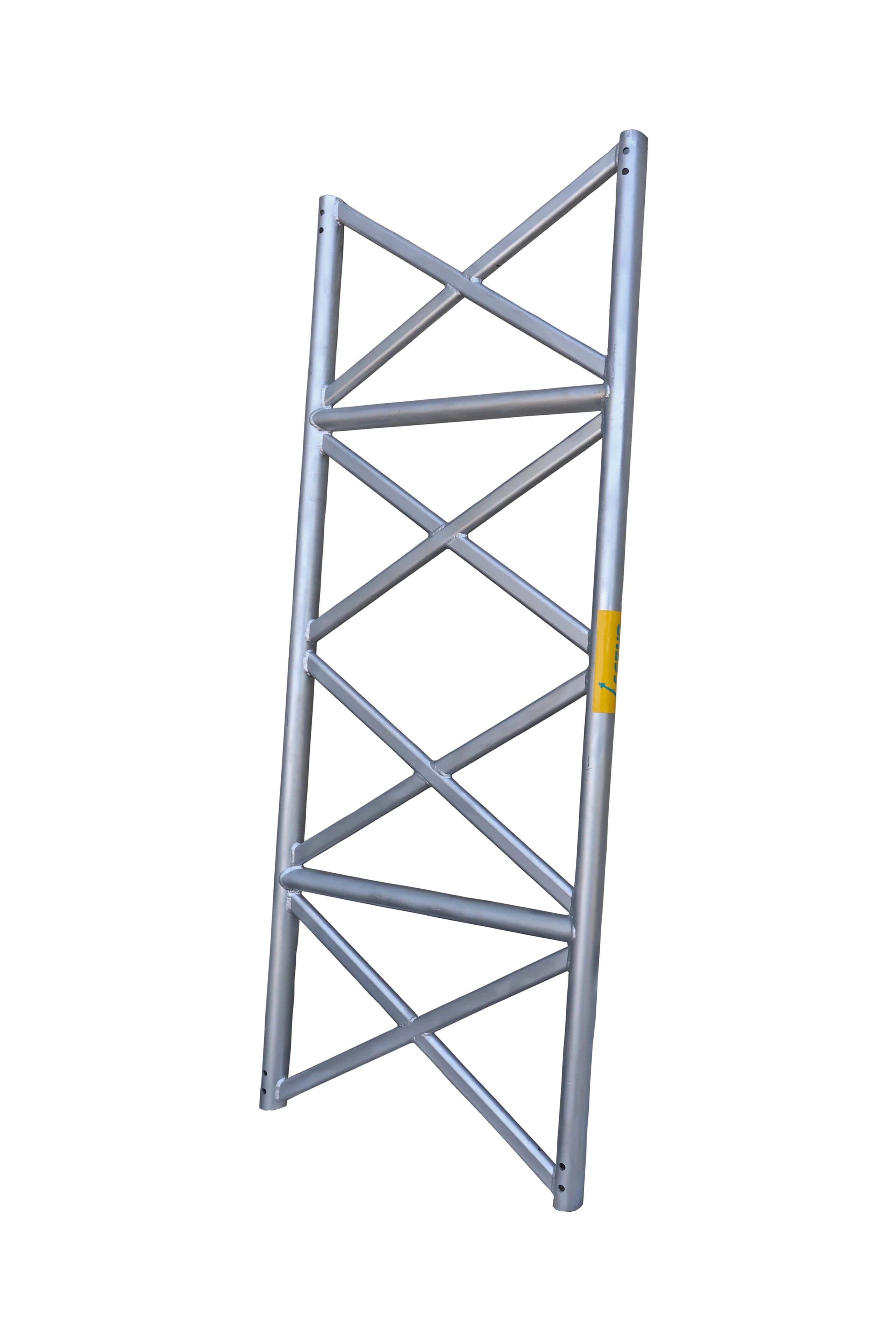

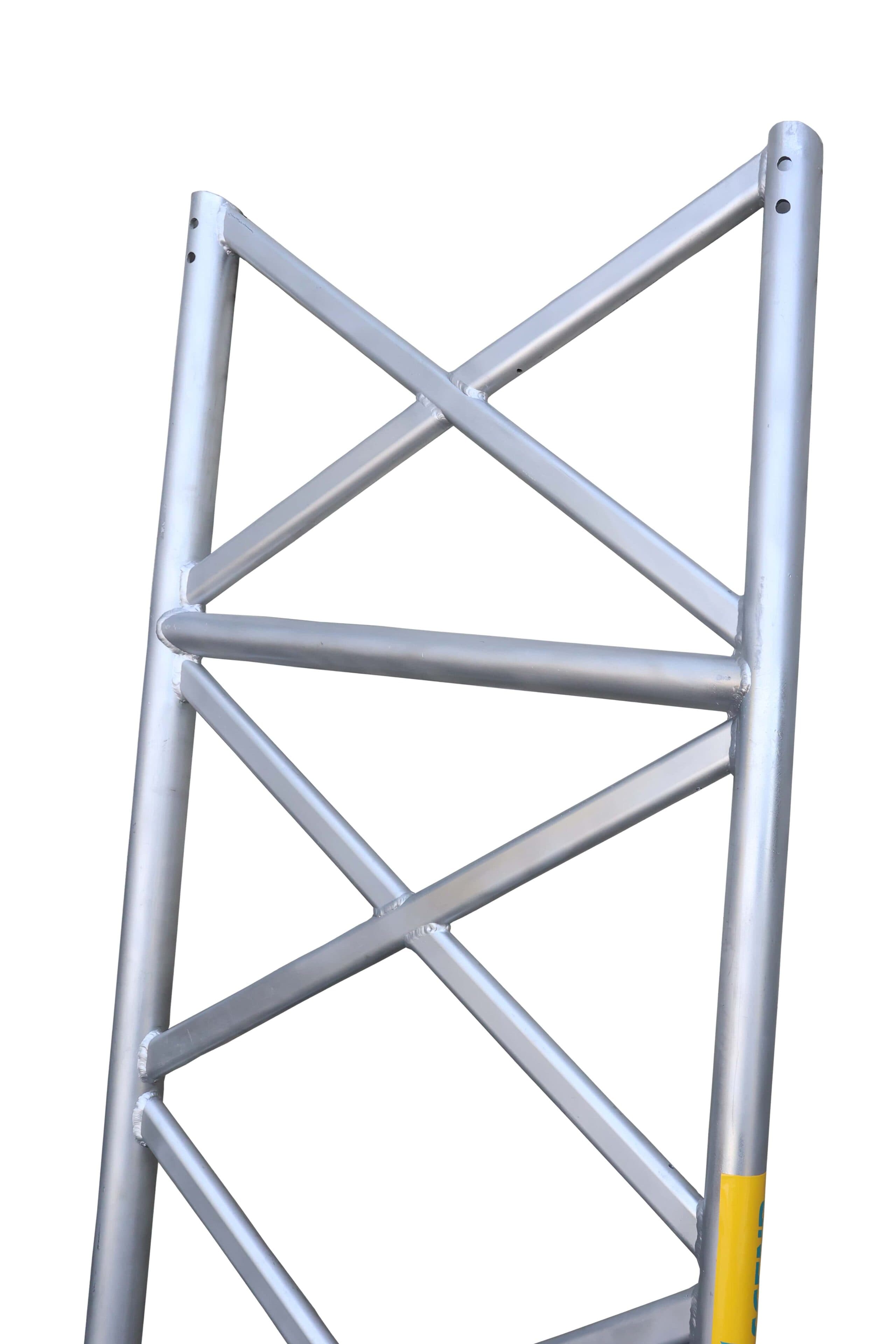

Aluminium X Beam

Aluminium X beam (750 mm) was originally designed to provide a light weight alternative to traditional steel unit beam .It has over twice the allowable working load in both bending moment and shear. The 750mm deep X Beam is also used as the main structural component & temporary roofing system. ASCEND X BEAM consistently manufactured 6082 T6 aluminium that fully designed as per BS EN 8118 & EN 1999-1-1

Inquire Now

Top, Bottom & vertical Alu profile: 48.3*4.0 mm wall Thickness
Diagonal Alu Profile: 40*21*3.5 mm
All Joints are TIG Welded (welder qualified to BS EN 9606-1-1)
X-Beam Standard Length :(2, 2, 4, 5 & 6Mtr)
Non Standard length made to order

Technical Specification Lattice Beam (450 mm) Standard Length : (2.19, 3.16, 4.12, 5.1 & 6.06 Mtr) Non – standard length made to bulk order Overall Width: 450 mm Alu Scaff Tube Profile: 48.0*4 mm wall Thickness Alu Diagonal Profile: 40.0*21.0*3.5 mm Wall Thickness Grade: 6082 (T6) All Joints are TIG Welded (welder qualified to BS EN 9606-2:2004) Desinged as per BS 8118 & BS EN 1999-1-1 Standard

All pictures shown are for illustration purpose only.
